DELUXE PANEL ELITE

High-current switch panel performance at a budget-minded price.

We’ve taken our standard switch panel and paired it with two external relay board and wiring kit options for the price conscious racer.

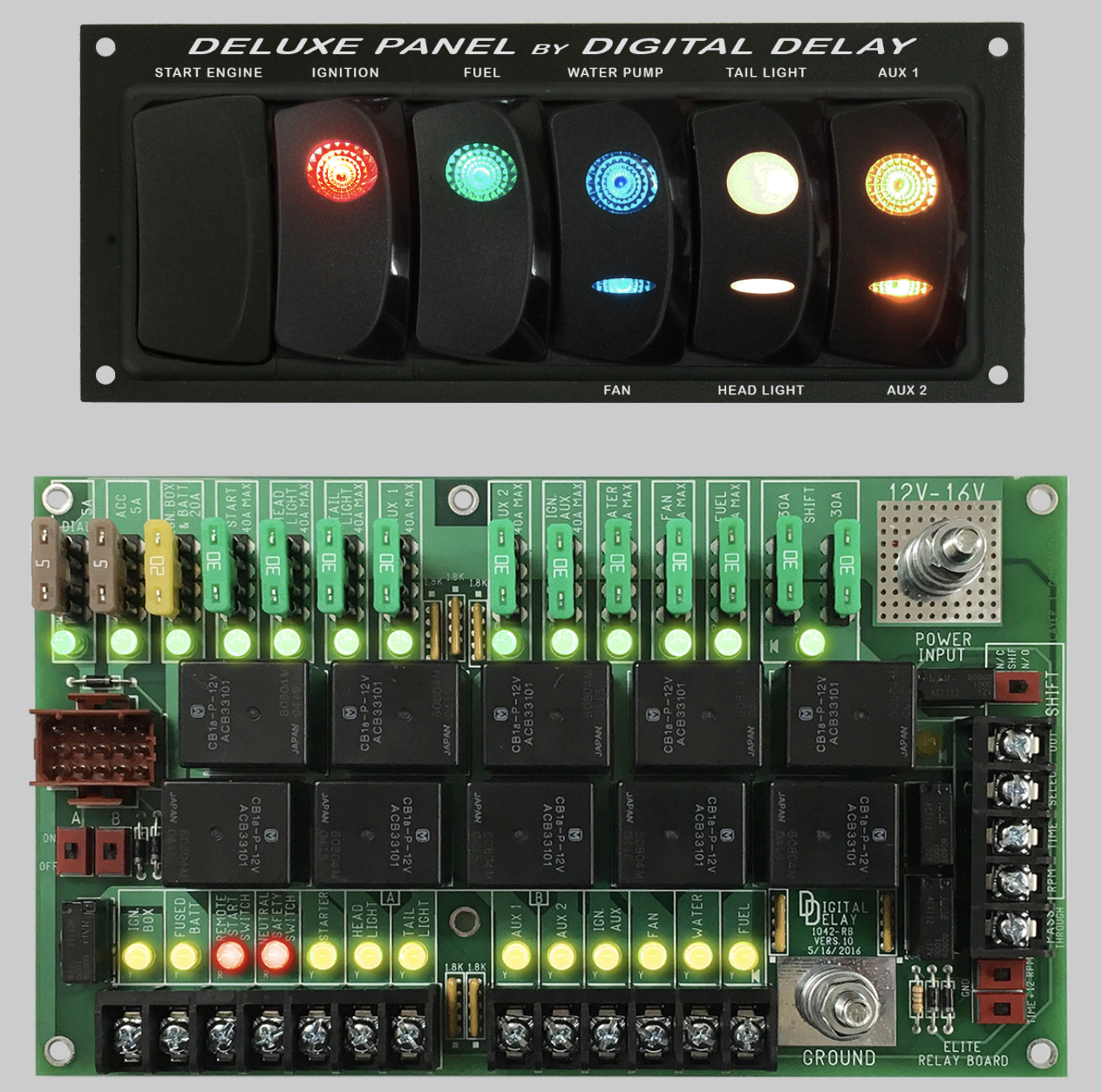

Deluxe Panel is available with our Deluxe Relay Board or our Elite Relay Board for a big amp load-rating at a mid-range price.

Premium grade switches combine new-age design with functionality. The ignition and fuel pump switches are dual position switches, while the Fan/Water Pump, Head light/Tail light, and Aux-1/Aux-2 are three position switches.

Comes with a Wiring Kit with enough color coded wire, connectors, wire ties and a complete color coded diagram to help you neatly wire a vehicle.

FEATURES & SPECIFICATIONS

  • Deluxe Panel – 8″ W x 3¼” H x 1¾” D
  • Elite Relay Board – 8½” W x 5″ H x 1″ D
  • Complete color-coded Wiring Kit with connectors and color-coded diagram.
Switches
  • Unlit Start Rocker Switch
  • Lit Ignition Rocker Switch
  • Lit Fuel Rocker Switch
  • Lit Dual Select Water Pump/Fan Switch
  • Lit Dual Select Headlight/Taillight Switch
  • Lit Dual Select Aux 1/Aux 2 Switch
Connections
  • 8-foot Grey Cable
  • 7 Amp Switched Ignition Output Terminal
  • 3 Amp Switched Taillight Output Terminal
Control Inputs
  • Neutral Safety Switch Input
  • Remote Start Input
  • Constant 2 Amp (Passthrough)
Power Outputs
  • 40 Amp Start Output
  • 20 Amp Ignition
  • 20 Amp Ignition Auxiliary
  • 40 Amp Fuel
  • 40 Amp Fan
  • 40 Amp Water
  • 40 Amp Headlight
  • 40 Amp Taillight
  • 40 Amp Aux 1
  • 40 Amp Aux 2
  • 20 Amp Fused Power Output
Shift Features
  • 2 Shift Inputs
  • Selectable Shift Input Source
  • 2 Selectable GND or POWER Inputs
  • 60 Amp Selectable N.C. or N.O. Output
