DELUXE MEGA PANEL

Our industry-leading Mega Panel now paired with either our Deluxe or Elite Relay Board.

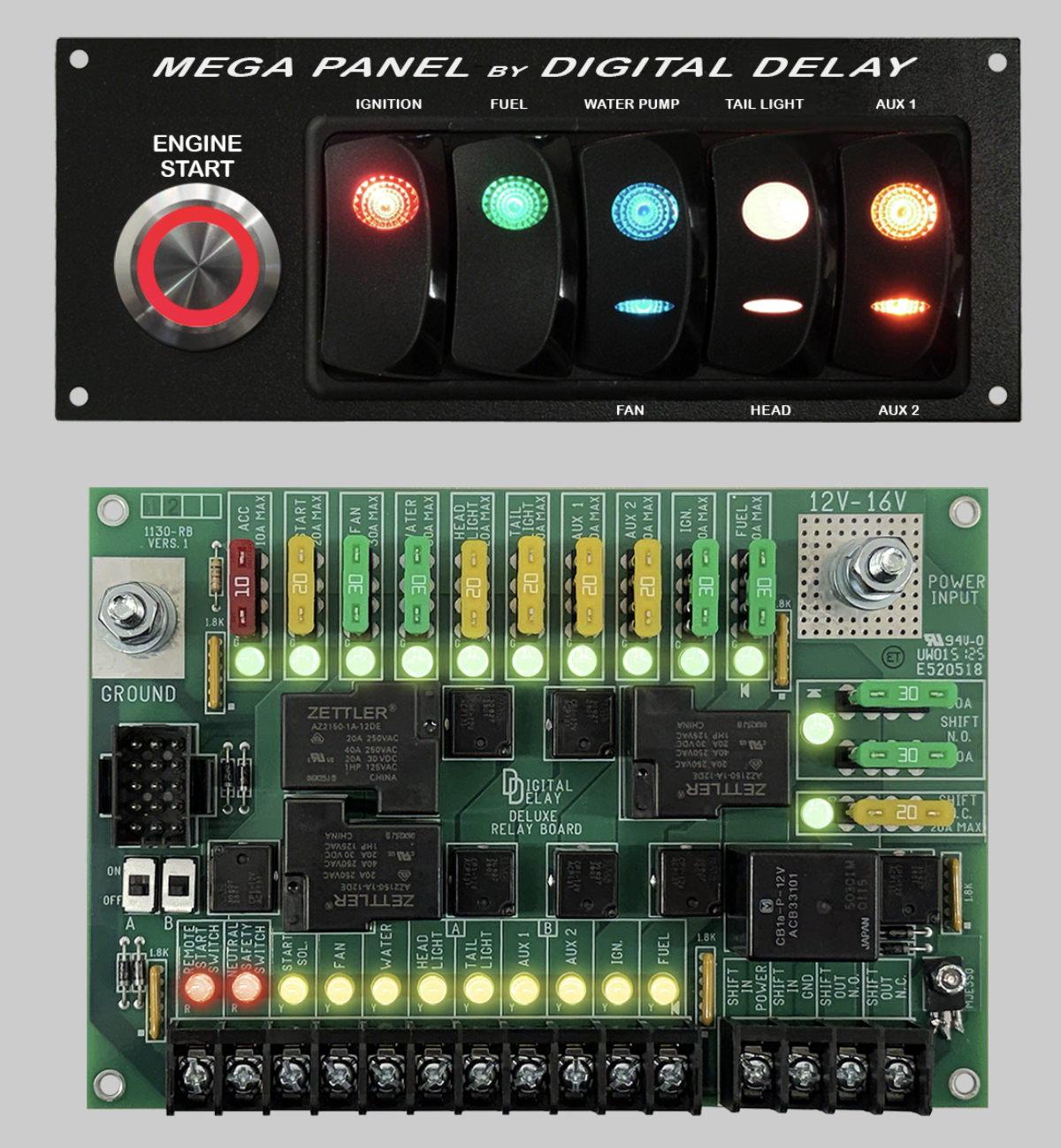

Our advanced, sleek and compact Mega Panel powered by our external Deluxe Relay Board, or Elite Relay Board.

Controlled by premium grade switches featuring our popular Lit Ring Push Start Button.

Comes with a Wiring Kit with enough color coded wire, connectors, wire ties and a complete color coded diagram to help you neatly wire a vehicle.

FEATURES & SPECIFICATIONS

• Mega Panel – 8″ W x 3¼” H x 1¾” D
• Deluxe Relay Board – 7¼” W x 5″ H x 1″ D
• Complete color-coded Wiring Kit with connectors and color-coded diagram.

Switches

• 1¼” Lit Ring Start Push Button
• Lit Ignition Rocker Switch
• Lit Fuel Rocker Switch
• Lit Dual Select Water Pump/Fan Switch
• Lit Dual Select Headlight/Taillight Switch
• Lit Dual Select Aux 1/Aux 2 Switch

Connections

• 8-foot Grey Cable
• —
• 2.5 Amp Switched Ignition Output Terminal
• 2.5 Amp Switched Taillight Output Terminal
• 2 Amp Constant Fused Power Output Terminal
• Ground Terminal

Control Inputs

• Neutral Safety Switch Input
• Remote Start Input

Power Outputs

• 20 Amp Start Output
• 30 Amp Ignition
• 20 Amp Fuel
• 30 Amp Fan
• 30 Amp Water
• 20 Amp Headlight
• 20 Amp Taillight
• 20 Amp Aux 1
• 20 Amp Aux 2

Shift Features

• 1 Shift Input
• Fixed GND and POWER Shift Inputs
• 60 Amp Fixed N.O. Output
• 20 Amp Fixed N.C. Output
